Saw blade diameters: ⌀16-32mm
Front Angle: -5°-+30°
Tooth Length:3.5-10mm
Tooth Width:1.5-12mm

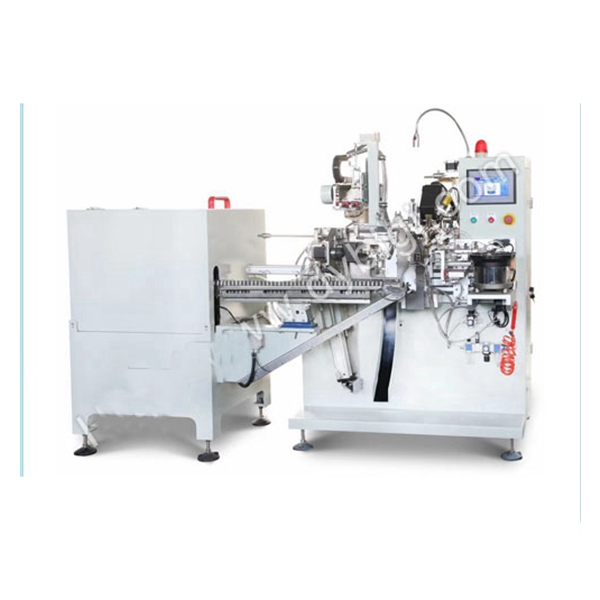

● This machine is a professional equipment for automatic welding of carbide alloy hole metal teeth.
● The hole body is selected by vibrating plate, automatically arranged, and then automatically clamped by a robot. No need for manual single clamping, one person can operate more than 10 devices.
● Automatic tooth selection, dispensing, wire selection, welding and tempering, the welding quality is stable and firm.
● The use of cutting-edge infrared temperature measuring device makes the temperature control accuracy error ≤1°, thus ensuring the welding strength.
● Imported electrical components, advanced UHF heating controller, small size, low energy consumption and high efficiency.
|
NO |
Items |
Dates |
|
1 |
Saw blade diameters |
⌀16-32mm |
|
2 |
Front Angle |
-5°-+30° |
|
3 |
Tooth Length |
3.5-10mm |
|
4 |
Tooth Width |
1.5-12mm |
|
5 |
Tooth thickness |
1.4-6mm |
|
6 |
Brazing speed |
500（Teeth/hour） |
|
7 |
Brazing precision |
≤0.03mm |
|
8 |
Brazing strength |
≥120MPA |
|
9 |
Power supply |
220V 50HZ |
|
10 |
Total power |
7..5KW |
|
11 |
High frequency output power |
6.5KW |
|
12 |
Working air pressure |
≥0.5MPA |
|
13 |
Working water pressure |
≥3.5kg/cm2 |
|
14 |
Weight |
720KG |
|
15 |
Dimensions |
2050×1015×1450mm |
