Saw Blade diameters: ф100—ф300mm
Saw Blade thickness: ≤10mm
Working air pressure: ≥0.5MPA
Loading & unloading : Automatic

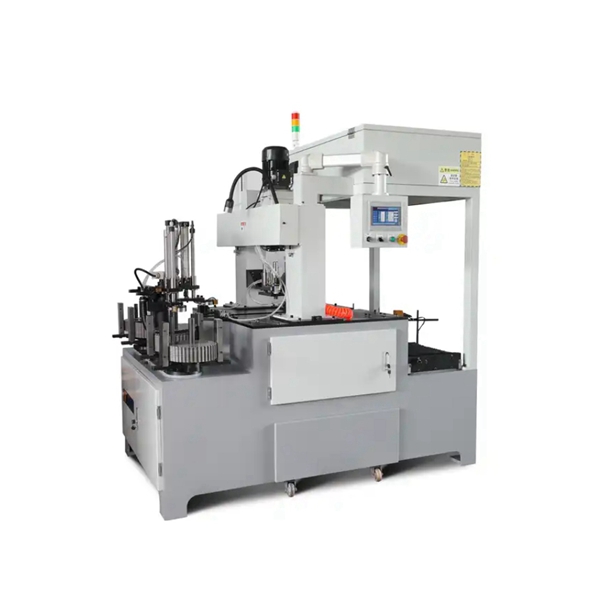

● This machine is a special equipment for the center hole reaming of carbide circular saw blades and diamond circular saw blades.

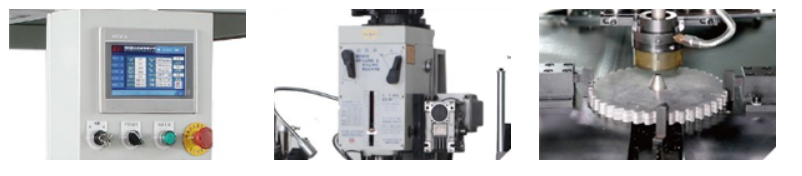

● Easy to operate and easy to adjust. This machine adopts robotic automatic clamping and can operate multiple devices by one person.
● PLC program control, the center reamer adopts stepper motor feed, automatic centering reaming, high precision and stable performance.
|
NO |
Items |
Parameters |
|
1 |
Saw Blade diameters |
ф100—ф300mm |
|
2 |
Arbor size |
ф15—ф40mm |
|
3 |
Saw Blade thickness |
≤10mm |
|
4 |
Working air pressure |
≥0.5MPA |
|
5 |
Total power |
2.6 KW |
|
6 |
Voltage |
380V , 50HZ , 3 Phase |
|
7 |
Weight |
1350KG |
|
8 |
Dimensions |
1500X1100X1800mm |
