Saw blade diameters: ⌀100-800mm
Tooth pitch: 8-50mm
Grinding speed:10-30(Tooth /min)
Grinding wheel: Diamond wheel

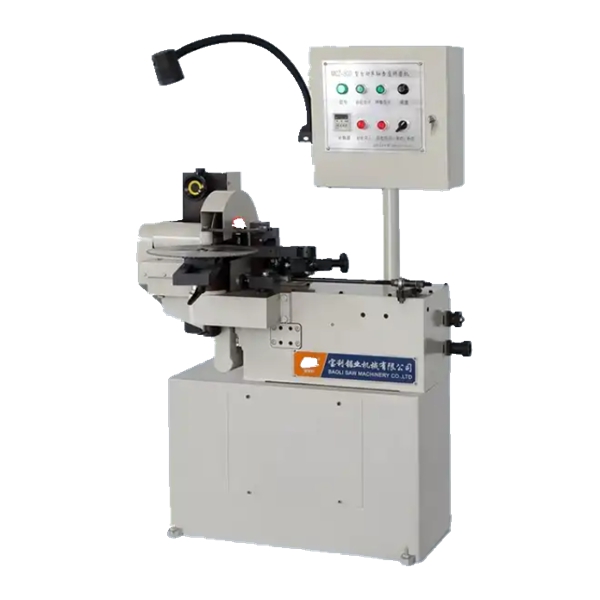

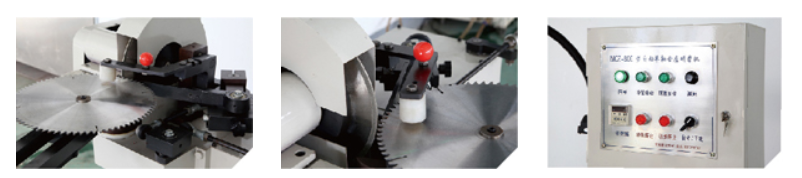

● This machine is a special equipment for the grinding of the base of the carbide circular saw blade.
● This machine adopts a special mechanical transmission mechanism to ensure the consistency of the tooth feeding position and the grinding depth every time. It can correct the diameter jump generated during the base stamping to within 0.05mm, which greatly improves the static balance of the saw blade and improves the saw. The stability of the film.
● High efficiency, the class produces about 15,000 teeth.
● The equipment is strong in steel, stable in performance and low in maintenance cost.
|
NO |
Items |
Description |
|
1 |
Saw blade diameters |
⌀100-800mm |
|
2 |
Center arbor size |
⌀12-50mm ( custom available) |
|
3 |
Tooth pitch |
8-50mm |
|
4 |
Grinding speed |
10-30(T/min) |
|
5 |
Diamond wheel |
⌀255×⌀25.4×2-3mm(Electroplated diamond wheel) |
|
6 |
Total power |
1KW |
|
7 |
Power supply |
380V 50HZ,3phase |
|
8 |
Weight |
400KG |
|
9 |
Dimensions |
920×1000×1400mm |
