Blade diameters: ф105—ф355mm
Side angel range: 0°-5°
Tip width: 1-20mm
Tip length: 3-15mm

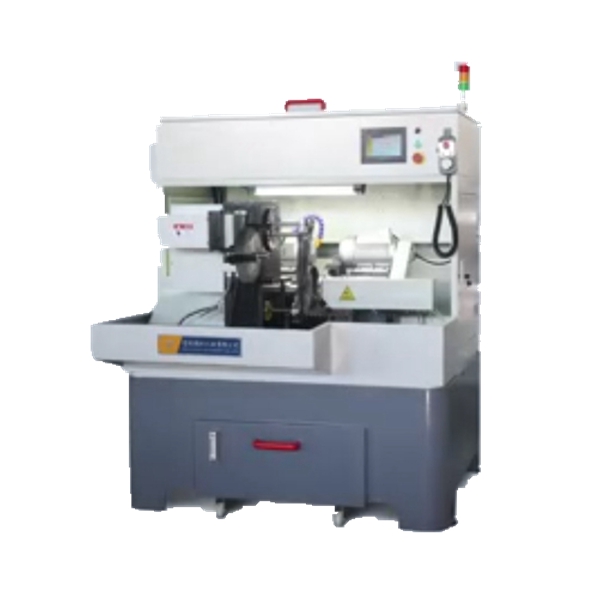

● This machine is a special equipment for grinding the side of the saw teeth of carbide circular saw blades.

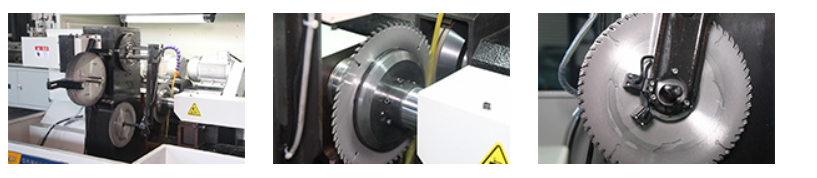

● Semi-enclosed and environmentally friendly design, using a robot to automatically clamp the saw blade, one person can operate multiple pieces of equipment, saving labor and improving work efficiency.
● By making both sides of the rough grinding saw tooth uniform and symmetrical, the side angle fine grinding efficiency can be improved, the grinding wheel loss is low, and the grinding accuracy and smoothness of the alloy saw tooth after fine grinding are improved.
|
NO |
Items |
Description |
|
|
1 |
Blade diameters |
ф105—ф355mm |
|
|
2 |
Arbor size |
ф12—ф50mm |
|
|
3 |
Max Tooth pitch |
80mm |
|
|
4 |
Side angel range |
0°-5° |
|
|
5 |
Tip width |
1-20mm |
|
|
6 |
Tip length |
3-15mm |
|
|
7 |
Grinding wheel size |
180x32x5x7x35T |
|
|
8 |
Wheel speed |
2800-4000(R/min) |
|
|
9 |
Saw blade speed |
15-30 (R/min) |
|
|
10 |
Working air pressure |
≥0.5Mpa |
|
|
11 |
Total power |
6 KW |
|
|
12 |
Weight |
1588KG |
|
|
13 |
Dimensions |
|
