Blade diameters ： ф100—ф260mm
Tooth pitch：5-65mm
Front Angle : -5°—+30°
Radial Angle : -5°—5°

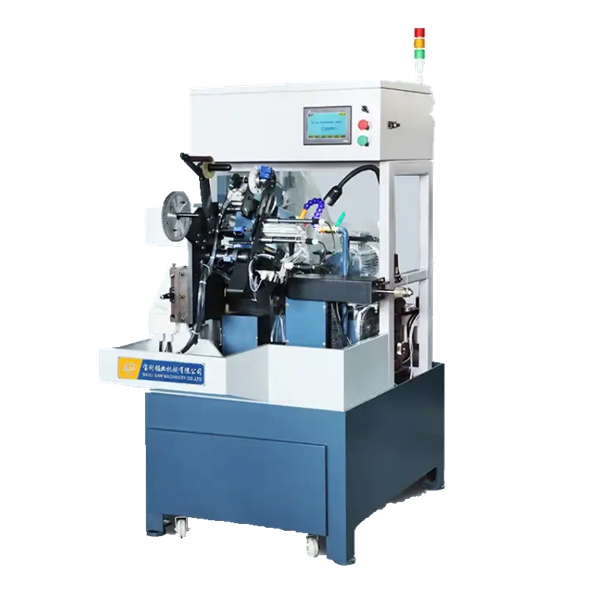

● This machine is a special equipment for the front angle grinding of carbide circular saw blades.

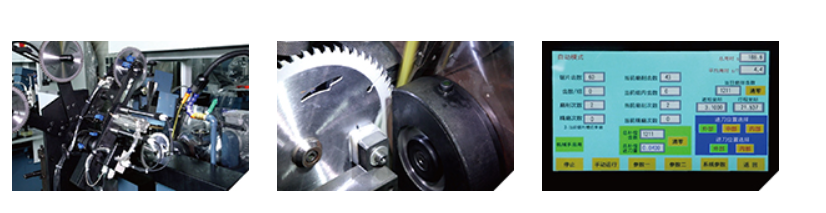

● Semi-enclosed environment-friendly design, robotic automatic clamping saw blade, one person can operate 10-15 sets of equipment.
● Omron PLC, flexible program setting, infeed position, retracting position can be arbitrarily selected to achieve various grinding methods.
● Achieve a gradual micro-feed, the amount of feed can be set, the grinding precision is high, and the grinding wheel loss is low.
● Realize the automatic compensation function, as long as the compensation amount is set properly, no manual feeding is required, which improves the accuracy of the product, and also reduces the difficulty and labor intensity of operation. One person can operate multiple devices.。
● Special tooth shape grinding can be set arbitrarily.
|
NO |
Items |
Description |
|
1 |
Blade diameters |
ф100—ф260mm |
|
2 |
Arbor size |
ф15—ф50mm |
|
3 |
Tooth pitch |
5-65mm |
|
4 |
Front Angle |
-5°—+30° |
|
5 |
Radial Angle |
-5°—5° |
|
6 |
Perigon angle |
0 —5° |
|
7 |
Grinding edge width |
1.5-13mm |
|
8 |
Grinding edge thickness |
1.5—4mm |
|
9 |
Grinding edge length |
3-12mm |
|
10 |
Grinding precision |
≤0.03mm |
|
11 |
Diamond wheel |
ф100xф20x5mm |
|
12 |
Diamond wheel grit |
220# 280#（Recommended ） |
|
13 |
Working air pressure |
≥0.5Mpa |
|
14 |
Total power |
2.7 KW |
|
15 |
Weight |
1080KG |
|
16 |
Dimensions |
852x1545x2026mm |
