Saw Blade diameters:ф100—ф300mm
Print type: Laser printer
Loading & unloading: Automatic
Working air pressure: ≥0.5MPA

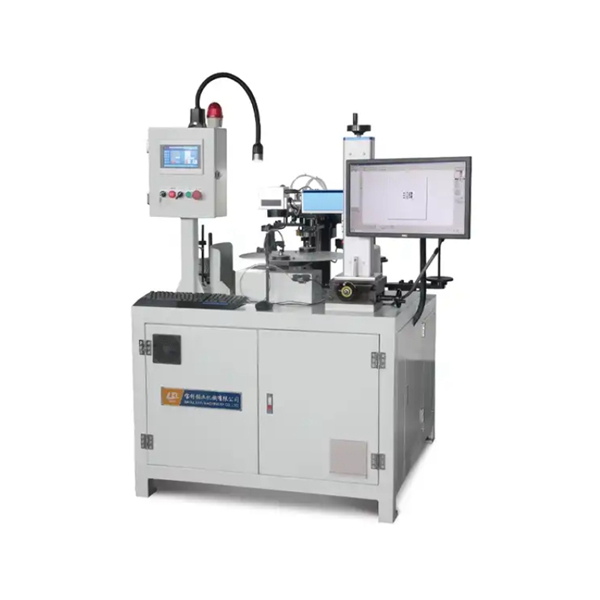

●This machine is a special equipment for laser marking of carbide circular saw blades or diamond saw blades.
● Fully automatic PLC program operation, simple operation and clear parameter settings.

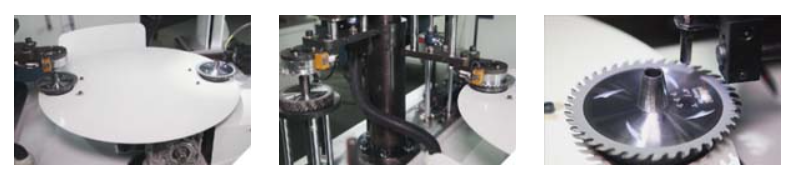

● The manipulator automatically loads and unloads materials, and one person can operate multiple pieces of equipment.
● The turntable adopts a divider, which has stable performance and high efficiency. The production capacity is about 3600 pieces per shift.
|
NO |
Items |
Parameters |
|
1 |
Saw Blade diameters |
ф100—ф300mm |
|
2 |
Arbor size |
ф15—ф50mm (customized ) |
|
3 |
Working air pressure |
≥0.5MPA |
|
4 |
Total power |
0.65 KW |
|
5 |
Voltage |
380V , 50HZ , 3 Phase |
|
6 |
Weight |
580KG |
|
7 |
Dimensions |
1250X1330X1700mm |
