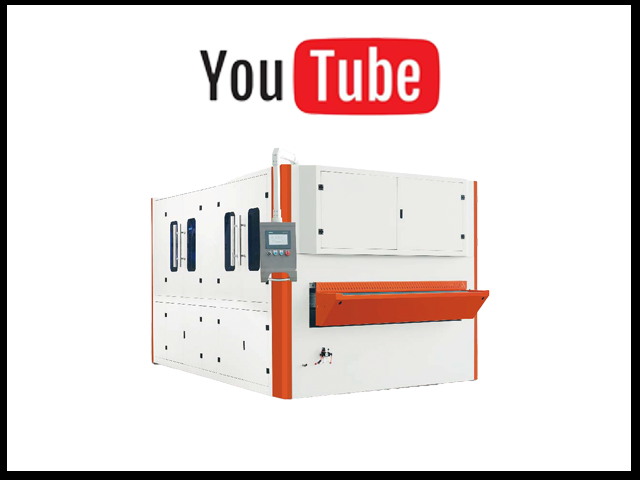

Metal grinding and deburring machine

Effective processing width：1650mm
Processing thickness：0.5-80 mm
Feeding speed：0.5-9 m/min
Sanding belt size：2200*1650mm

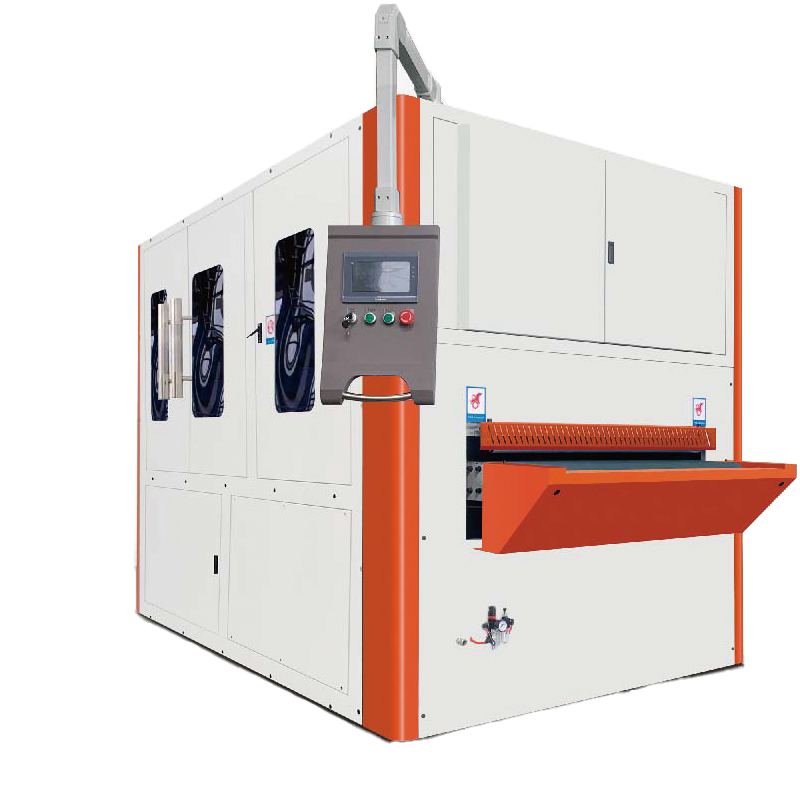

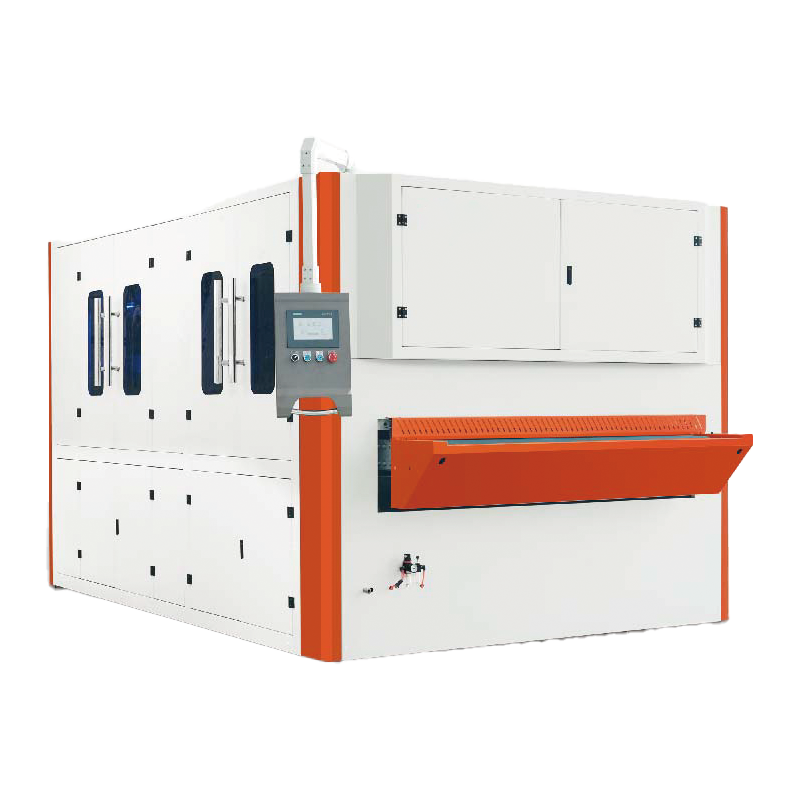

Metal grinding and deburring machine

1.Abrasive belt: The abrasive belt rotates at high speed driven by the grinding roller to draw, polish and remove slag from the workpiece surface.

2.Universal roller: The abrasive of the multi-thread wheel rotates at high speed (rotates on its own) and makes a 360-degree revolution, grinding the 90-degree corner edge of the workpiece, making the contour edges around the workpiece surface and inside the hole smooth and rounded, producing a rounded corner effect.

3.The equipment is used for surface drawing, polishing, descratching, deburring and chamfering of laser-cut parts, stamping parts, water jet cutting parts, plasma cutting parts and flame cutting parts.

NO	item	Parameter value
1	Effective processing width	1650mm
2	Processing thickness	0.5-80 mm
3	Feeding speed	0.5-9 m/min
4	Belt speed	2.2-11m/sec
5	Sanding belt size	2200*1650mm
6	Workbench height	860 mm
7	Motor power	Sanding belt motor 30kw
		Conveying motor 3kw
		Thickness calibration motor 0.75kw
8	Touch screen size	7 inches
9	Wet dust removal equipment (optional)	5.5KW
10	Adsorption negative pressure fan (optional)	15kw
11	Equipment noise	≤80db
12	control system	Plc
13	Three-phase working power supply	240 V/50 Hz
1 4	Overall dimensions ( length × width × height ) mm	2650 × 2450 ×2 350
1 5	weight	300 0kg

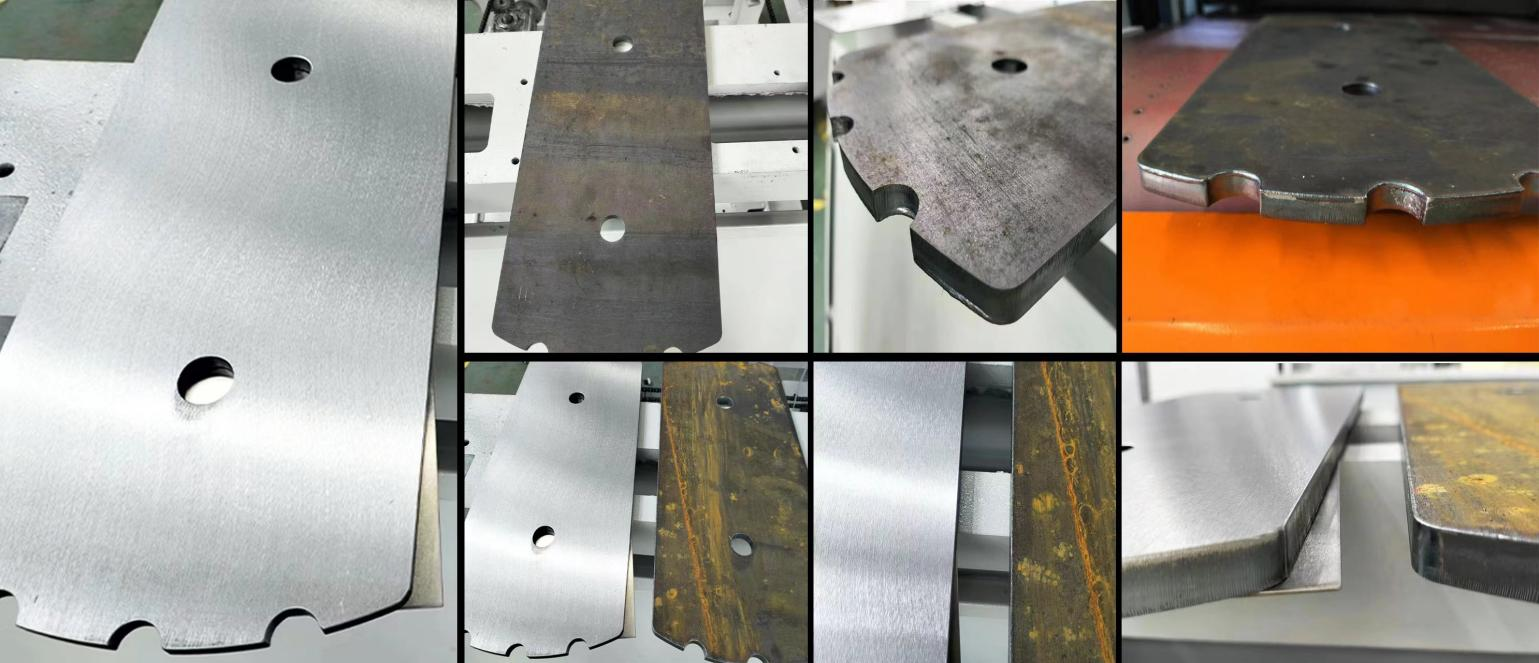

Sample display
