Diameters range:Φ 100-￠800mm
Teeth pitch range:7-100mm
Front angle: 5°~+30°
Back angle:6-45°

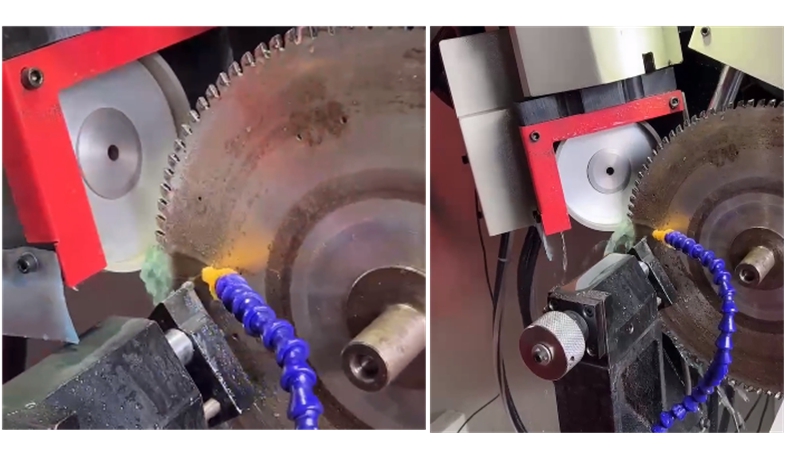

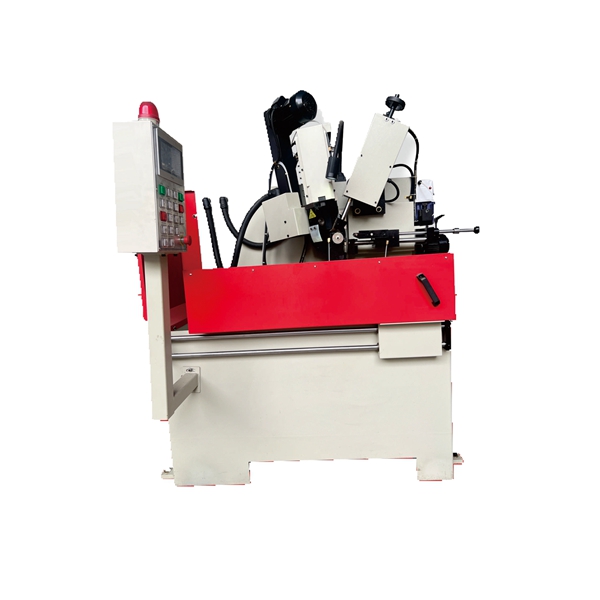

LDX-026 CNC auto front and back grinding machine for hard tips
Technical features:
The design of this machine refers to the characteristics of similar models at home and abroad, absorbs and analyzes the advantages of the same type, and at the same time makes some functional improvements.
1. Preset multiple sets of tooth profiles, one-button multi-function operation.
2. The ladder-flat teeth can be completed at one time, CNC grinding, any tooth shape, which can increase the efficiency by 3 times; the improved tooth extraction operation improves accuracy and extends service life.
|
NO |
Description |
Parameters |
|
1 |
Model
|
LDX-026 CNC auto front and back grinding machine
|
|
2 |
Processing saw blade diameters range |
Φ 100-￠800mm
|
|
3 |
Arbor size |
Φ 10-220mm |
|
4 |
Saw blade thickness ( metal plate) |
1-8mm |
|
5 |
Teeth pitch range |
7-100mm |
|
6 |
Front angle |
5°~+30° |
|
7 |
Back angle |
6-45° |
|
8 |
Left and right slope of Teeth |
Teeth top/face 45° |
|
9 |
Sharpening stroke range |
maximum 25mm (adjustable) teeth/minute |
|
10 |
Sharpening speed |
0.5-6mm/s |
|
11 |
Working speed |
maximum 20 teeth/min |
|
12 |
Grinding wheel size (outer diameter x hole) |
Φ 125mmxΦ 32mm |
|
13 |
Negative chamfer grinding |
-27 degrees |
|
14 |
Grinding head rotatable angle |
90 degrees and 180 degrees |
|
15 |
Grinding wheel linear speed |
26m/s |
|
16 |
Coolant water pump flow |
501/min |
|
17 |
Coolant cylinder volume |
85L |
|
18 |
Coolant cylinder volume |
85L |
|
19 |
Total power |
1.85kW/2.2kW |
|
20 |
Voltage: |
three-phase 380v, 50hz |
|
21 |
Mechanical weight: 900KG |
900KG |
|
22 |
Mechanical dimensions (length x width x height) |
1500X1300X1900mm |
