Saw Blade Diameters: ф100—ф305mm
Sand grit sizes: 36# 46# (Recommended use)
Loading & unloading: automatic
Dust collector: yes

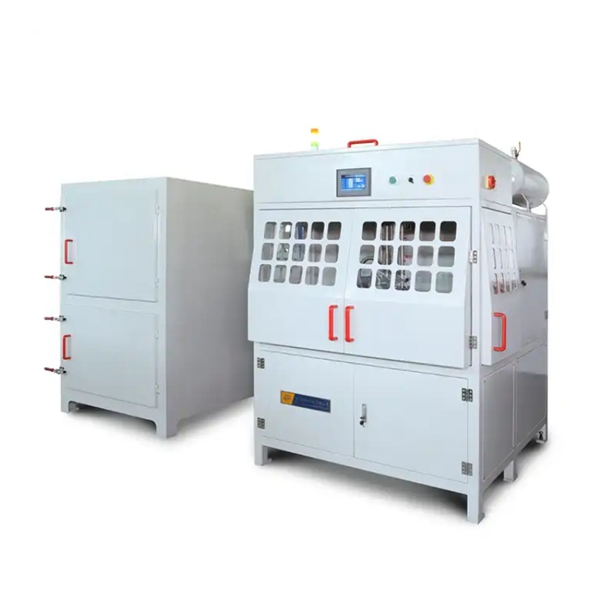

● Used for carbide saw blade sand blasting.
●Adopts closed environmentally friendly design protection, load and unload blades automatically, so one person can operate 5-6 machines, improving work efficiency greatly, 2500 blades per shift.

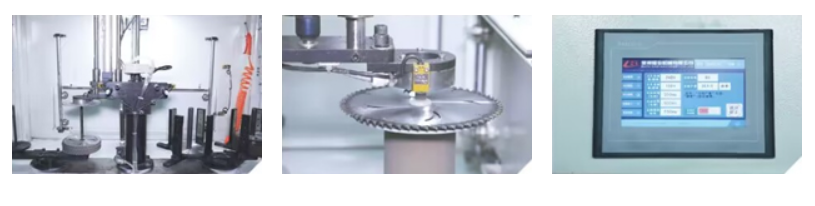

●The spray gun installation mechanism adopts a simultaneous movement device of three spray guns, making it very convenient to change varieties and adjust.
●Equipped with a centralized vacuum cleaner, which is highly environmentally friendly and has a high utilization rate of diamond sand. It can be reused, greatly saving costs.
●Easy to operate and dust-free, it is an ideal sandblasting equipment for producing alloy circular saw blades.
|
NO |
Items |
Parameters |
|
1 |
Saw Blade Diameters |
ф100—ф305mm |
|
2 |
Arbor Size |
ф10—ф50mm(Special specifications can be customized) |
|
3 |
Compressed air pressure |
≤0.9Mpa |
|
4 |
Grit sizes |
36# 46# (Recommended use) |
|
5 |
Working air pressure |
≥0.8MPA |
|
6 |
Total power |
3.7KW |
|
7 |
Voltage |
380V, 50HZ, 3 Phase |
|
8 |
Weight |
1530kg |
|
9 |
Dimensions |
1830X2580X2200mm(host) |
|
10 |
Dust collector |
2000X1900X2010mm |
|
11 |
Others |
Tank air compressor |
