Blade diameters：ф105—ф315mm
Tooth pitch：5—65mm
Radial angle：-5°~ ± 30°
Perigon angle：0—5°

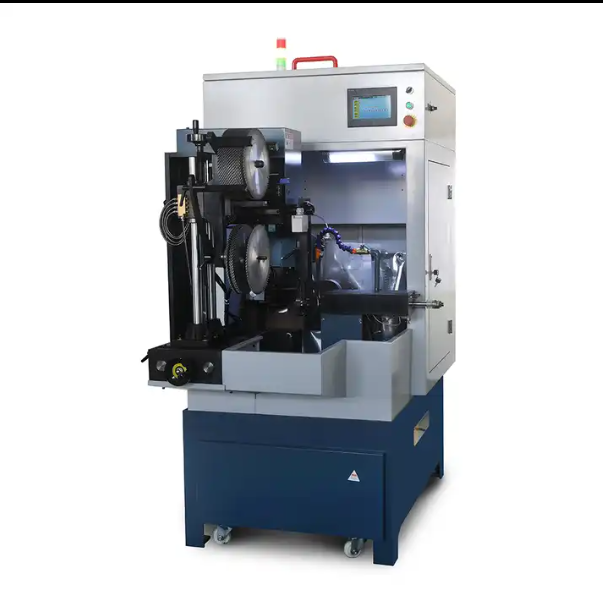

● This machine is a special equipment for the corner grinding of professional grade carbide circular saw blades.
● Semi-enclosed environment-friendly design, robotic automatic clamping saw blade, one person can operate 10-15 sets of equipment.
● The Omron PLC and Mitsubishi servo motor are used to implement the micro-injection. The feed amount can be set. The equipment has good rigidity. The ball screw of the Shangyin brand and the linear slide of the precision grade are adopted. The vertical grinding precision is high and the grinding wheel loss is low.
● The program settings are flexible and the position of the infeed position can be arbitrarily selected to achieve various grinding methods.
● Realize the automatic compensation function, as long as the compensation amount is set properly, no manual feeding is required, which ensures the consistency of product accuracy.
● Special tooth shape grinding can be set arbitrarily.
|
NO |
Items |
Description |
|
1 |
Blade diameters |
ф105—ф315mm |
|
2 |
Arbor size |
ф12—ф50mm |
|
3 |
Tooth pitch |
5—65mm |
|
4 |
Radial angle |
-5°— ± 30° |
|
5 |
Back Angle |
-5°—5° |
|
6 |
Perigon angle |
0—5° |
|
7 |
Grinding edge width |
1.5-13mm（Side angle） |
|
8 |
Grinding edge thickness |
1.5—4mm |
|
9 |
Grinding edge length |
3—12mm |
|
10 |
Grinding precision |
≤0.02mm |
|
11 |
Grinding speed |
20 Teeth / minute（T/min） |
|
12 |
Diamond wheel |
ф100xф20x4mm |
|
13 |
Diamond wheel grit |
220# 280#（Recommended Use） |
|
14 |
Working air pressure |
≥0.5Mpa |
|
15 |
Total power |
3.5KW |
|
16 |
Weight |
1200kg |
|
17 |
Dimensions |
1570x1823x1930mm |
