Blade diameters: ф100—ф315mm
Tooth pitch: 5—65mm
Back Angle:0° — + 30°
Bevel angle: ±45°

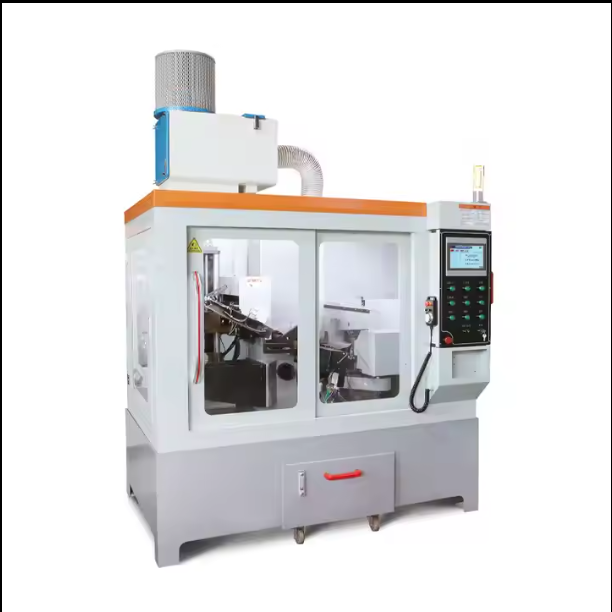

● This machine is for professional level carbide saw blade face angle grinding.
● Adopts closed environmentally friendly design protection, the robot can load and unload blades automatically, so one person can operate 10-15 machines.
● Adopts OMRON PLC, Mitsubishi servo motor with excellent steel structure, feed rate can be set with micro feed function. Stable performance with hi-win brand ball screw and precision linear sliding rail, high vertical grinding accuracy.
● Complete all tooth geometry grinding at one time, with grinding programs commonly used for various tooth profiles, like flat tooth, ATB, ABTR etc..
● For ATB, TCG finish one side, then another side, the grinder just need to turn one time to save time and keep stable.
● Grinding wheel could be automatically compensated by suitable feed rate set, no need to do manual feed to ensure accuracy consistency.
● Grinding amount of special tooth shapes can be set arbitrarily.
|
NO |
Items |
Description |
|
1 |
Blade diameter |
ф100—ф315mm |
|
2 |
Arbor size |
ф12—ф50mm |
|
3 |
Tooth pitch |
5—65mm |
|
4 |
Back Angle |
0° — + 30° |
|
5 |
Bevel angle |
±45° |
|
6 |
Grinding length |
0—25mm |
|
7 |
Grinding precision |
≤0.02mm |
|
8 |
Grinding speed |
20 Teeth / minute（T/min） |
|
9 |
Diamond wheel |
ф125xф20x5mm |
|
10 |
Diamond wheel grit |
280# 220#（Recommended Use） |
|
11 |
Working air pressure |
≥0.5Mpa |
|
12 |
Total power |
3KW |
|
13 |
Weight |
1960kg |
|
14 |
Dimensions |
1860X1368×2603mm |
